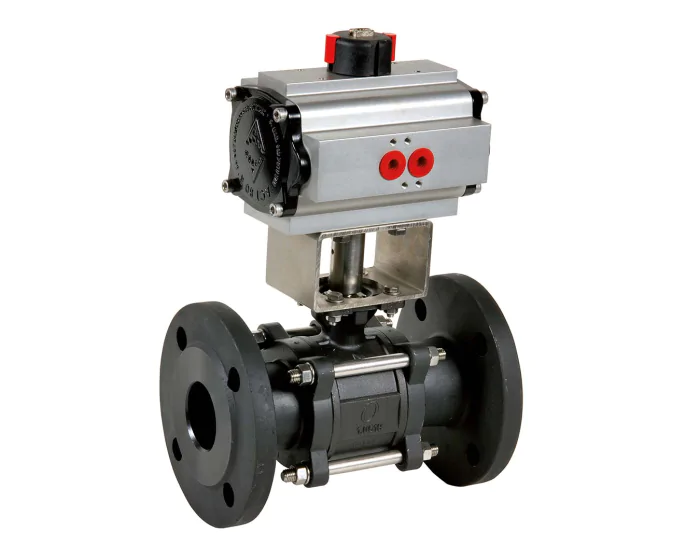

The 765XS series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN100.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Steam |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting | 271322015100 | S1002340 |
€275.81
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return | 271322016100 | S1002341 |
€297.01
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting | 271323015100 | S1002342 |
€307.63
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return | 271323016101 | S1002343 |
€339.46
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting | 271324015100 | S1002344 |
€319.30
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return | 271324016101 | S1002345 |
€350.06
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting | 271325015100 | S1002346 |
€360.67
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return | 271325016102 | S1002347 |
€434.93
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting | 271326015101 | S1002348 |
€487.97
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return | 271326016103 | S1002349 |
€583.44
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting | 271327015102 | S1002350 |
€615.26
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return | 271327016104 | S1002351 |
€700.13
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Double acting | 271328015102 | S1002352 |
€869.86
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Spring return | 271328016104 | S1002353 |
€981.24
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Double acting | 271329015103 | S1002354 |
€1,143.54
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Spring return | 271329016105 | S1002355 |
€1,326.00
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Double acting | 271330015104 | S1002356 |
€1,506.34
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Spring return | 271330016106 | S1002357 |
€1,760.93
(excl. btw)
|
add to cart |
